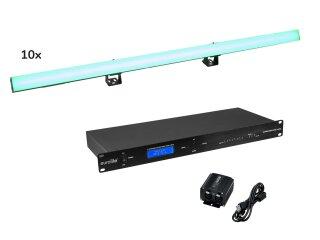

EUROLITE Set 10x LED PR-100/32 Pixel DMX Rail + DMX Software

10x DMX-controllable pixel rail with RGB color mixing incl. USB interface and Art-Net interface

EUROLITE LED PR-100/32 Pixel DMX rail

DMX controlled pixel tube with RGB color mixing

• DMX and power terminals intelligently designed for easy wiring
• Front cover: milky
• 96 powerful LEDs SMD 5050 3in1 TCL RGB (homogenous color mix)
  32 segments controlled separately
• Color blend stepless; color change adjustable; colors preset; Dimmer electronic
• 12 integrated show programs
• Direct color selection for 17 preset colors
• The device is cooled by passive convection cooling
• Control via stand-alone; DMX; Sound to light via Microphone
• With a beam angle of 120°
• With Mounting bracket
• 4 digit 7-segment LED display
• Silent operation
• Preprogrammed in Light Captain
• Mains input and output for power linking up to 8 units
• For application areas such as: Clubs/dancing school; Trade fair and shop fitting; Stage; restaurants, bars and hotels
• Application possibility: Suspended; Wall mounting

Package contents

• 1 x light effect, 1 x user manual, 1 x power cord

EUROLITE USB Interface 2x512 DMX/Artnet incl. 64x DMX512 Control Software

USB interface for 2 DMX universes with 3 lighting control softwares

• LED PC Control (architectural lighting)
• DMX Control (show lighting)
• Pixel Control (pixel mapping and video mixing)
• 64 Art-Net universes with 512 channels each on Ethernet
• 32,768 individual channels or 10,922 RGB pixels
• High DVI resolution output (1024 x 768 pixels)
• Supports touch screen controls
• Can transmit up to 1024 DMX channels
• Control via DMX
• The device can be connected via USB to the PC
• For application areas such as: Clubs/dancing school; Trade fair and shop fitting; Installation; restaurants, bars and hotels

Package contents

• 1 x device, 1 x uSB cable

EUROLITE Art-Net/DMX Node 8 MK2

Art-Net interface for output of 8 universes on XLR

• Parallel DMX input possible (1024 channels)
• 8 optically isolated XLR plugs (3-pin) for DMX output
• 2 XLR jacks (3-pin) for DMX input
• Variable data routing capabilities for all DMX outputs
• User-friendly configuration directly at the front panel via 4 operating buttons and alphanumeric LCD screen (2 x 16 characters)
• LED indication for functions
• Splitter operation possible
• Can transmit up to 4096 DMX channels
• Control via ArtNet
• The device can be connected via RJ-45 (F) mounting version to the PC
• (19") 48.3 cm rack installation

Package contents

• 1 x device, 1 x user manual, 1 x power cord
