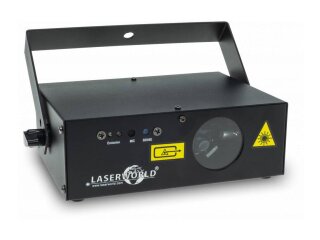

LASERWORLD EL-230RGB MK2

SKU: 51743209
GTIN: 7640144991630
Category: Laser

Show laser class 3B with 230 mW power in red, green, blue

Control via DMX; stand-alone; sound to light via microphone
With mounting bracket
For application areas such as: Party room; mobile djs / entertainer; clubs/dancing school
Application possibility: Suspended
For further information about this product, please refer to the Data Sheet under "Downloads"

Package contents

1 x laser, 1 x user manual, 1 x power cord, 1 x Interlock, 1 x key

170,50 €

incl. 20% VAT , plus

Old price: 184,45 €

Available immediately
Delivery time: 4 - 8 Workdays (AT - int. shipments may differ)

pcs.

components are loading ...

The Laserworld EL-230RGB MK2 is a RGB laser system with a total output power of up to 230 mW. The red diode laser module with a wavelength of 650 nm, the green DPSS laser module with a wavelength of 532nm and the royal-blue laser module with a wavelength of 445 nm ensure beautiful colors and brightness. The beams have a diameter of about ca. 4 mm and a beam divergence of about 1 mrad and the projector offers high-speed step motors, up to 2-5 kpps as well as a scan angle of up to 30°. About ca. 50 (layers, tunnels, fences, waves, etc.) can be controlled via DMX. A sound-to-light mode as well as a stand-alone mode are available too. For the sound-to-light mode the sensitivity of the integrated adjustable microphone can be adjusted.There is an interlock connector for safety switch as well as a key switch at the rear side of this very compact device. The Laserworld EL-230RGB MK2 is a good solution for first-time users and mobile use and it is often used in bars, small clubs, at private parties or for home use. With ultra bright 445 nm royal blue!

Show laser class 3B with 230 mW power in red, green, blue

Control via DMX; stand-alone; sound to light via microphone
With mounting bracket
For application areas such as: Party room; mobile djs / entertainer; clubs/dancing school
Application possibility: Suspended
For further information about this product, please refer to the Data Sheet under "Downloads"

Package contents

1 x laser, 1 x user manual, 1 x power cord, 1 x Interlock, 1 x key

Power supply:	100-240 V AC, 50/60 Hz
Power consumption:	15 W
IP classification:	IP20
Power connection:	Mains input via IEC (M) power supply cord with safety plug (provided)
Laser class:	3B
Laser color:	R/G/B
Laser module:	Red (R) 70 mW 638nm Green (G) 25 mW 532nm Blue (B) 60 mW 450nm
Control:	DMX; stand-alone; sound to light via microphone
Housing color:	Black
Attachment system:	Mounting bracket
Dimensions:	Length: 0,205 cm Width: 0,145 cm Height: 0,07 cm
Weight:	1,92 kg

Shipping weight:	3,10 kg
Item weight:	2,35 kg
Dimensions ( Length × Width × Height ):	13,00 × 28,00 × 24,00 cm
