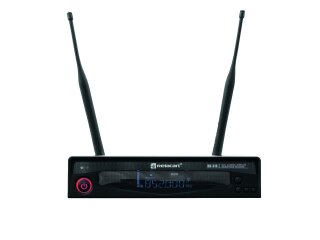

RELACART HR-31S 1-channel True Diversity Receiver

True diversity wireless receiver with PC control

• Multifrequency wireless receiver with high-quality true diversity reception
• Real-time monitoring and data management using RWW PC software
• 731-790 MHz (requires license in Germany) is lockable and offers 244 fixed frequencies (10 frequency banks with up to 25 frequencies each)
• 823-832 MHz (license-free in Germany) offers 48 fixed frequencies (8 frequency banks with up to 7 frequencies each)
• 292 frequencies manually adjustable in steps of 25 kHz within 68 MHz switching bandwidth
• Pilot frequency squelch technology delete wireless RF interference
• Automatic frequency scan (AFS) finds interference-free channels
• Easy and error-free synchronization between receiver and transmitter via infrared signal
• Serial RS-485 interface for connecting a computer with the optional USB/RS-485 converter U485
• Up to 32 units can be linked with network cables
• Lock function for prevents undesired changes to settings
• 2 detachable BNC antennas allow for use with the R-14D antenna divider
• Monochrome LCD display
• UHF 823 - 832 MHz License-free and approved in large parts of Europe
• UHF 731 - 790 MHz License-free and approved in large parts of Europe
• Operating range up to 80m with line-of-sight
• The device can be connected via RJ14 (F) mounting version to the PC in connection with RELACART RWW software and the Dongle (optional)
• Desktop console housing
• (19") 48.3 cm rack installation possible 1 U
• Up to 12 transmitters can be operated in parallel without interference
• Charge status indicator

Package contents

• 1 x device, 2 x antenna, 1 x external mains adapter, 1 x jack cable, 1 x user manual, 1 x declaration of conformity, 1 x bag, 3 x mounting bracket, 10 x screw
