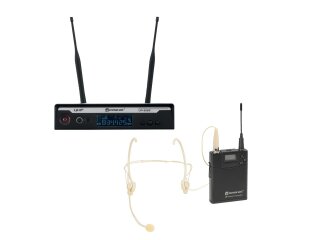

RELACART Set UR-222S Bodypack with HM-600S Headset

RELACART UR-222S 1-channel UHF Receiver 823-832 + 863-865 MHz

Multifrequency wireless receiver with high-quality diversity reception

• 10 groups with 90 fixed frequencies within 11 MHz switching bandwidth
• Pilot frequency squelch technology delete wireless RF interference
• Automatic frequency scan (AFS) finds interference-free channels
• Easy and error-free synchronization between receiver and transmitter via infrared signal
• 2 detachable BNC antennas allow for use with the R-14D antenna divider
• Up to 9 transmitters can be operated in parallel without interference
• Multicolor LCD display
• UHF 863 - 865 MHz License-free and approved in Europe
• UHF 823 - 832 MHz License-free and approved in large parts of Europe
• Operating range up to 80m
• Desktop console housing
• (19") 48.3 cm rack installation possible 1 U
• Charge status indicator

Package contents

• 1 x receiver, 1 x external mains adapter, 2 x antenna, 1 x jack cable, 3 x mounting bracket, 8 x screw, 1 x user manual, 1 x declaration of conformity, 1 x bag

RELACART UT-222 Bodypack with HM-600S Headset

Bodypack transmitter with PLL multifrequency transmitter, 823-832 + 863-865 MHz

• Durable aluminum alloy housing, applicable for touring
• Pilot frequency squelch technology delete wireless RF interference
• 10 groups with 90 fixed frequencies within 11 MHz switching bandwidth
• Easy and error-free synchronization between receiver and transmitter via infrared signal
• Adjustable input gain
• RF output power Hi/Low adjustable
• Lock function for prevents undesired changes to settings
• Up to 9 transmitters can be operated in parallel without interference

transmitter

• OLED display
• UHF 823 - 832 MHz License-free and approved in large parts of Europe
• UHF 863 - 865 MHz License-free and approved in Europe
• Operating range up to 80m

Microphone

• Polar pattern: Omnidirectional
• For further information about this product, please refer to the Data Sheet under "Downloads"

Package contents

• 1 x transmitter, 1 x microphone, 1 x windshield, 1 x user manual, 1 x declaration of conformity
